羅茨風機

江蘇名業機械科技有限公司/ 羅茨風機

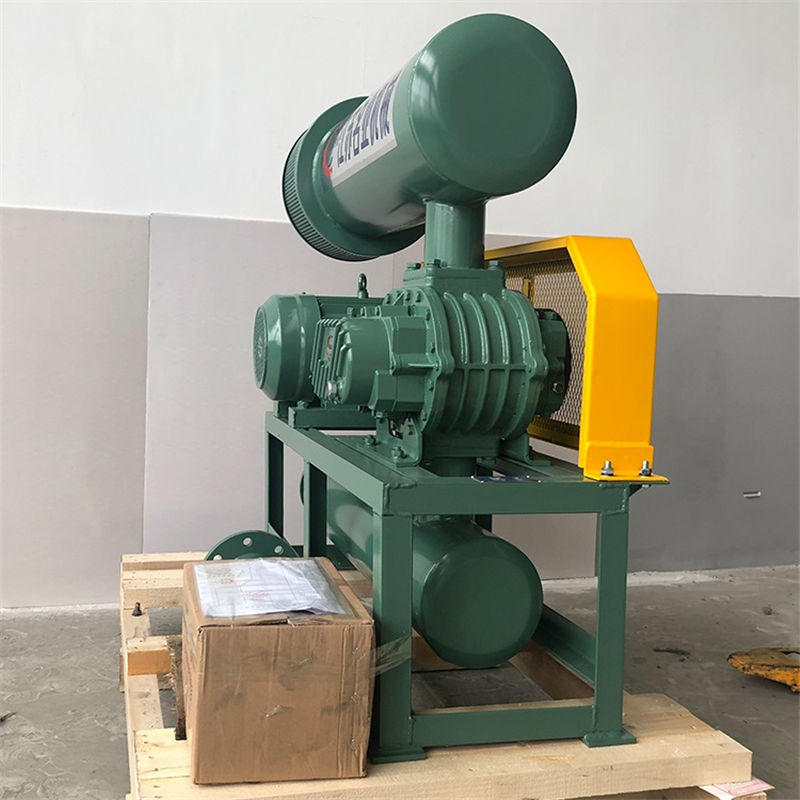

羅茨風機SL-5006
時間：2019-12-07

羅茨風機參數：

型號	排風口徑 MM	轉速 rpm	不同壓力下的吸入口風量（m3/min)及軸功率（KW)
			0.1kgf/cm2		0.2kgf/cm2		0.3kgf/cm2		0.4kgf/cm2		0.5kgf/cm2		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2
			1000mmH2O		2000mmH2O		3000mmH2O		4000mmH2O		5000mmH2O		6000mmH2O		7000mmH2O		8000mmH2O
			0.01Mpa		0.02Mpa		0.03Mpa		0.04Mpa		0.05Mpa		0.06Mpa		0.07Mpa		0.08Mpa
			m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
SL 5003	65 (2.5〞)	800	2.37	1.00	2.02	1.60	1.75	2.10	1.63	2.60	1.43	3.20	1.23	4.02
		1000	3.18	1.30	2.83	2.00	2.56	2.60	2.43	3.30	2.13	4.00	1.95	4.60	1.75	5.50
		1200	3.98	1.50	3.63	2.40	3.36	3.20	3.13	4.00	2.93	4.80	2.75	5.60	2.59	6.40
		1400	4.78	1.80	4.43	2.70	4.16	3.70	3.94	4.60	3.74	5.60	3.56	6.50	3.39	7.40	3.24	8.40
		1600	5.59	2.10	5.24	3.00	5.17	4.20	4.94	5.30	4.68	6.40	4.56	7.40	4.29	8.50	4.14	9.60
		1800	6.39	2.30	6.24	3.50	5.87	4.70	5.75	5.90	5.45	7.10	5.17	8.50	5.09	9.60	4.98	10.80
		2000	7.20	2.60	6.85	3.90	6.66	5.30	6.54	6.60	6.35	7.90	6.06	9.60	5.80	10.60	5.65	12.00
		2200	8.00	2.80	7.65	4.30	7.38	5.80	7.16	7.30	6.96	8.70	6.78	10.60	6.61	11.70	6.45	13.20
SL 5006	100 (4〞)	800	3.84	1.30	3.35	2.20	2.97	3.00	2.66	3.80	2.38	4.70	2.12	5.50
		1000	5.34	1.70	4.98	2.70	4.78	3.80	4.66	4.80	4.53	5.90	4.38	6.90	3.97	7.90
		1200	6.36	2.00	6.25	3.30	6.01	4.50	5.88	5.80	4.46	7.00	4.98	8.88	4.65	9.50
		1400	7.88	2.30	7.78	3.80	7.56	5.30	7.46	6.70	7.23	8.20	6.90	9.70	6.56	11.10	6.34	12.60
		1600	9.70	2.70	9.55	4.30	9.37	6.00	9.12	7.70	8.76	9.40	8.21	11.00	8.05	12.70	7.88	14.40
		1800	11.13	3.00	11	4.90	10.67	6.80	10.23	8.70	9.88	10.50	9.50	12.40	9.18	14.30	8.89	16.20
		2000	12.39	3.30	12.22	5.40	11.78	7.50	11.56	10.20	11.34	11.70	11.11	13.80	10.89	15.90	10.22	18.00
		2200	13.64	3.70	13.15	6.00	12.78	8.30	12.46	10.60	12.18	12.90	11.93	15.20	11.69	17.50	11.48	19.80
SL 5009	100 (4〞)	800	5.83	1.70	5.2	2.90	4.72	4.20	4.32	5.40	3.96	6.00	3.62	6.90
		1000	7.98	2.10	7.67	3.70	7.32	5.20	7.04	6.70	6.8	8.30	6.45	9.30
		1200	9.50	2.60	8.87	4.40	8.39	6.20	7.99	8.10	7.63	9.90	7.21	10.90
		1400	11.33	3.00	10.71	5.10	10.23	7.30	9.82	9.40	9.47	11.60	9.12	12.60
		1600	13.17	3.40	12.54	5.90	12.03	8.30	11.66	10.80	11.3	13.20	10.78	15.20
		1800	15.00	3.90	14.38	6.60	13.9	9.40	13.49	12.10	13.14	14.90	12.14	16.90
		2000	16.84	4.30	16.21	7.40	15.73	10.40	15.33	13.50	14.97	16.50	13.57	18.50
		2200	18.67	4.70	18.05	8.10	17.57	11.50	17.16	14.80	16.81	18.20	16.11	20.20
SL 6005	80 (3〞)	800	4.63	1.70	4.07	2.70	3.65	3.60	3.29	4.60	2.97	5.60	2.68	6.60	2.42	7.60
		1000	6.13	2.10	5.57	3.30	5.14	4.60	4.78	5.80	4.46	7.10	4.17	8.30	3.91	9.50	3.66	10.80
		1200	7.62	2.50	7.07	4.00	6.64	5.50	6.28	7.00	5.96	8.50	5.67	10.00	5.76	11.50	5.00	12.90
		1400	9.12	2.90	8.56	4.60	8.13	6.40	7.77	8.10	7.45	9.90	7.17	11.60	6.90	13.40	6.65	15.10
		1600	10.61	3.30	10.06	5.30	9.63	7.30	9.27	9.30	8.95	11.30	8.66	13.30	8.40	15.30	8.15	17.30
		1800	12.11	3.70	11.55	6.00	11.12	8.20	10.76	10.50	10.44	12.70	10.16	14.90	9.89	17.20	9.64	19.40
		2000	13.60	4.10	13.05	6.60	12.62	9.10	12.26	11.60	11.94	14.10	11.95	16.60	11.39	19.10	11.14	21.60
SL 6008	125 (5〞)	800	7.41	2.30	6.51	3.80	5.83	5.40	5.25	7.00	4.74	8.60	4.28	10.20	3.86	11.80
		1000	10.45	2.80	9.88	4.80	9.46	6.80	9.12	8.80	8.53	10.80	8.21	12.80	7.88	14.80	4.12	16.70
		1200	12.98	3.40	12.29	5.80	11.61	8.20	11.12	10.50	10.52	12.90	10.21	15.30	9.64	17.70	9.25	20.10
		1400	15.58	3.90	15.12	6.70	14.77	9.50	14.42	12.30	13.91	15.10	13.45	17.90	13.01	20.70	12.64	23.40
		1600	16.97	4.50	16.45	7.70	15.99	10.90	15.43	14.10	14.97	17.20	14.35	20.40	13.67	23.60	13.03	26.80
		1800	19.67	5.10	19.46	8.70	18.99	12.20	18.5	15.80	18.1	19.40	17.78	23.00	17.40	26.60	17.03	30.10
		2000	21.75	2.60	20.85	9.60	20.17	13.60	19.59	17.60	19.08	21.60	18.62	25.50	18.20	29.50	17.81	33.50
SL 6015	150 (6〞)	800	14.90	3.60	14.22	6.60	13.94	9.60	12.86	12.60	10.4	14.30	8.70	16.30
		1000	19.38	4.60	18.71	8.30	17.43	12.00	16.34	15.80	15.2	19.93	14.20	22.93
		1200	22.87	5.50	21.2	10.00	19.91	14.40	18.83	18.90	17.83	21.40	16.07	23.40
		1400	27.36	6.40	25.68	11.60	24.4	16.80	23.31	22.10	22.02	25.00	20.12	28.00
		1600	31.84	7.30	30.17	13.30	28.88	19.30	27.8	25.20	26.21	28.60	24.56	31.60
		1800	36.33	8.20	34.65	14.90	33.37	21.70	32.28	28.40	30.4	32.20	27.49	36.20
		2000	40.81	9.10	39.14	16.60	37.85	24.10	36.77	31.50	34.59	35.70	30.50	39.70
SL 7006	100 (4〞)	700	6.93	2.10	6.26	3.60	5.75	5.00	5.32	6.40	4.94	7.80	4.59	9.30	4.27	10.70	4.24	10.90
		800	8.15	2.50	7.48	4.10	6.97	5.70	6.54	7.30	6.16	9.00	5.81	10.60	5.50	12.20	5.20	13.80
		1000	10.59	3.10	9.92	5.10	9.41	7.10	8.98	9.20	8.6	11.20	8.25	13.20	7.94	15.30	7.64	17.30
		1200	13.03	3.70	12.36	6.10	11.85	8.60	11.42	11.00	11.04	13.40	10.69	15.90	10.38	18.30	10.08	20.80
		1400	15.47	4.30	14.81	7.10	14.29	10.00	13.86	12.80	13.48	15.70	13.13	18.50	12.82	21.40	12.52	24.20
		1600	17.91	4.90	17.25	8.20	16.73	11.40	16.3	14.70	15.92	17.90	15.58	21.20	15.26	24.40	14.96	27.70
SL 7011	150 (6〞)	700	12.99	3.30	11.87	5.90	11.77	8.60	11.45	11.20	10.98	13.80	10.02	16.40	9.56	19.00
		800	16.23	3.80	15.11	6.80	14.78	9.80	14.54	12.80	13.9	15.70	13.33	18.70	12.80	21.70	12.11	24.70
		1000	20.71	4.80	19.59	8.50	18.74	12.20	18.02	16.00	17.38	19.70	16.81	23.40	16.28	27.10	14.79	30.90
		1200	24.88	5.70	24.11	10.00	23.25	14.50	22.52	19.00	21.88	23.40	21.31	27.90	20.78	32.40	19.25	36.90
		1400	29.72	6.50	28.59	11.70	27.73	16.90	27	22.10	26.36	27.40	25.79	32.60	25.26	37.80	24.76	43.00
		1600	33.20	7.40	32.07	13.40	31.21	19.30	30.48	25.30	29.84	31.30	29.27	37.20	28.72	43.20	28.24	49.20
SL 7018	200 (8〞)	700	21.55	4.80	19.79	9.10	18.45	13.40	17.33	17.60	16.3	18.50	14.80	19.50
		800	26.22	5.50	25.46	10.40	24.12	15.30	23.56	20.20	22.7	26.50	20.70	30.50
		1000	32.54	6.90	30.79	13.00	29.45	19.10	28.32	25.20	27.6	30.34	25.60	35.34
		1200	39.87	8.30	38.12	15.60	36.77	22.90	35.65	30.20	34.9	35.60	32.63	40.60
		1400	47.20	9.70	45.44	18.20	44.4	26.70	42.98	35.30	40	39.45	37.00	44.45
		1600	54.53	11.00	52.77	20.80	51.43	30.60	50.3	40.30	48.65	44.20	43.55	50.20

型號	排風口徑 MM	轉速 rpm	不同壓力下的吸入口風量（m3/min)及軸功率（KW)
			0.1kgf/cm2		0.2kgf/cm2		0.3kgf/cm2		0.4kgf/cm2		0.5kgf/cm2		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2
			1000mmH2O		2000mmH2O		3000mmH2O		4000mmH2O		5000mmH2O		6000mmH2O		7000mmH2O		8000mmH2O
			0.01Mpa		0.02Mpa		0.03Mpa		0.04Mpa		0.05Mpa		0.06Mpa		0.07Mpa		0.08Mpa
			m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
SL 8016	200 (8〞)	700	20.38	7.05	18.18	10.56	16.54	14.36	15.11	17.37	13.90	21.58	12.80	25.78
		850	25.87	8.56	23.67	13.30	22.02	17.44	20.60	21.10	19.39	26.20	18.29	31.30
		1000	31.35	10.08	29.16	15.09	27.51	20.52	26.09	24.82	24.88	30.82	23.78	36.82	22.72	42.83	21.80	48.83
		1150	36.84	11.59	34.65	17.35	33.00	23.59	31.57	28.54	30.37	35.45	29.27	42.35	28.21	49.25	27.29	56.15
		1250	40.50	12.60	38.30	18.86	36.66	25.65	35.23	31.02	34.02	38.53	32.93	46.03	31.87	53.53	30.95	61.04
		1400	45.99	14.11	43.79	21.12	42.15	28.72	40.72	34.75	39.51	43.15	38.41	51.55	37.35	59.96	36.44	68.36
		1500	49.65	15.11	47.45	22.63	45.80	30.78	44.38	37.23	43.17	46.23	42.07	55.24	41.01	64.24	40.10	73.24
SL 8024	250 (10〞)	700	30.85	9.34	27.73	14.94	25.32	20.92	23.29	25.74	21.54	32.04	19.95	38.33
		850	39.07	11.34	35.95	18.14	33.54	25.41	31.51	31.26	29.76	38.90	28.17	46.54
		1000	47.29	13.34	44.17	21.34	41.76	29.89	39.73	36.77	37.98	45.77	36.39	54.76
		1150	55.51	15.34	52.39	24.54	49.98	34.37	47.95	42.29	46.20	52.63	44.61	62.97
		1250	60.99	16.67	57.87	26.67	55.46	37.36	53.43	45.97	51.68	57.21	50.09	68.45
		1400	69.21	18.67	66.09	29.87	63.68	41.85	61.65	51.48	59.90	64.27	58.31	76.66
		1500	74.69	20.01	71.57	32.00	69.16	44.84	67.13	55.16	65.38	68.65	63.79	82.14
SL 9020	250 (10〞)	700	34.83	10.06	31.68	16.32	29.26	23.00	27.20	28.40	25.44	35.35	23.81	42.31
		850	43.92	12.22	40.77	19.82	38.35	27.93	36.29	34.48	34.53	42.93	32.89	51.38
		1000	53.01	14.37	49.86	23.32	47.43	32.86	45.37	40.57	43.62	50.50	41.98	60.44	40.47	70.38	39.13	80.32
		1150	62.09	16.53	58.94	26.82	56.52	37.79	54.46	46.65	52.70	58.08	51.70	69.51	49.55	80.94	48.22	92.37
		1250	68.15	17.96	65.00	29.15	62.58	41.08	60.52	50.71	58.76	63.13	57.13	75.55	55.61	87.98	54.28	100.40
		1400	77.24	20.12	74.09	32.64	71.66	46.01	69.60	56.79	67.85	70.71	66.21	84.62	64.70	98.54	63.36	112.45
		1500	83.30	21.56	80.15	34.98	77.72	49.30	75.66	60.85	73.91	75.76	72.27	90.67	70.76	105.57	69.42	12.48
SL 9030	300 (12〞)	700	52.65	13.82	48.12	23.54	44.68	33.83	41.78	42.20	39.24	52.61	36.97	63.01
		850	66.25	16.79	61.71	28.58	58.27	41.08	55.37	51.24	52.83	63.88	50.57	76.52
		1000	79.84	19.75	75.31	33.62	71.86	48.32	68.96	60.28	66.43	75.15	64.16	90.02
		1150	93.43	22.71	88.90	38.67	85.46	55.57	82.56	69.33	80.02	86.43	77.75	103.52
		1250	102.49	25.67	97.96	43.71	94.52	62.82	91.62	78.37	89.08	97.70	86.82	117.03
		1400	116.09	27.65	111.56	47.07	108.11	67.65	105.21	84.40	102.68	105.21	100.41	126.03
		1500	125.15	29.62	120.62	50.44	117.18	72.49	114.28	90.43	111.74	112.73	109.47	135.03
SL 10027	300 (12〞)	800	74.04	17.21	69.22	29.60	65.60	42.71	62.59	53.39	59.88	66.58	57.57	79.77
		900	79.06	19.36	74.24	33.30	70.63	48.05	67.61	60.07	64.90	74.90	62.59	89.74
		1000	89.11	21.51	84.29	37.00	80.67	53.39	77.66	66.74	74.95	83.23	72.64	99.71	70.32	116.19	68.32	132.68
		1100	99.16	23.66	94.34	40.70	90.72	58.73	87.70	73.42	84.99	91.55	82.68	109.68	80.37	127.81	78.36	145.94
		1250	114.23	26.89	109.41	46.25	105.79	66.74	102.77	83.43	100.06	104.03	97.75	124.64	95.44	145.24	93.43	165.85
		1400	129.30	30.11	124.47	51.80	120.86	74.74	117.84	93.44	115.13	116.52	112.82	139.59	110.51	162.67	108.50	185.75
SL 10034	350 (14〞)	800	94.08	20.95	88.39	36.78	84.08	53.48	80.41	67.13	77.24	83.75	74.33	100.37
		900	100.42	23.57	94.72	41.38	90.41	60.17	86.74	75.52	83.57	94.22	80.66	112.92
		1000	113.08	26.19	107.38	45.98	103.07	66.85	99.40	83.91	96.24	104.69	93.32	125.47
		1100	125.74	30.12	120.04	52.87	115.74	76.88	112.06	96.50	108.90	120.39	105.99	144.28
		1250	144.73	34.05	139.04	29.77	134.73	86.91	131.06	109.09	127.89	136.10	124.98	163.10
		1400	163.73	36.67	158.03	64.37	153.72	93.59	150.05	117.48	146.89	146.56	143.97	175.65
